Portable Davit Bases


Basic Hoist System

Basic Hoist System in use Basic Hoist System Basic Hoist System folded for transport
Click on main image to expand

The Basic Hoist System, excluding winch or fall arrest block, weighs in at just 26.3 kgs and is sectional to aid transportation. The unit also has an attachment point via karabiner for a fall arrest block should a backup be required.

The Basic Hoist System is similar to the portable davit but only allows one person entry. Weighing little more than a tripod this offers a flexible alternative.

  • Great for small entries and when weight is at a premium.
  • Connection for 1 winch or fall arrest retrieve block.
  • Provides an open side for easier access.
Weekly hire rate excluding VAT
Basic Hoist System £50.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Basic Hoist System £40.00
Safe Working Load: 140kg
Physical Weight: 23.6kg
Height: 223.5cm to 231.2cm
Maximum Leg Span: 160.0cm
Storage Length: 151.1cm x 43.1cm
Mast Offset: 15.2cm - 50.8cm
Top

Portable Davit

Portable Davit in use Portable Davit
Click on main image to expand

The Sala Portable Davit system is perfect for circumstances where you need entry into a large tank or vessel where the opening is too large for a tripod to span.

The Portable Davit is normally used at the corner of the tank as the legs form a 'Y' shape with the davit arm extending out over the opening.

The system incorporates the Sala quick fit locating bracket for easy connection of winches and fall arrest units.

  • Use of 2 man riding winches or one winch and a secondary back up.
  • Safe Working Load of 160 Kgs.
  • Supplied with a pulley wheel for the use of a secondary unit.
  • Item is in two parts for ease of transport.
Weekly hire rate excluding VAT
Portable Davit £60.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Portable Davit £40.00
Safe Working Load: 160kg
Physical Weight (total): 33.11kg (excludes winch)
Maximum Height: 2.0m
Davit Reach: 0.6m
Top

Adjustable Barrel Mount Sleeve Davit

Adjustable Barrel Mount Davit Base Adjustable Barrel Mount Davit Base in use Adjustable Barrel Mount Davit Base Adjustable Barrel Mount Davit Base ready for Transport
Click on main image to expand

The Adjustable Barrel Mount Sleeve Davit makes it possible to provide a safe access solution where this would previously have been very difficult. This can also be used to form a lifting point onto a trench sheet up-stand. If used with very light duty sheets such as M6 then a wooden sleeper should be used behind the sheets so as to increase the allowable bending moment.

The Adjustable Barrel Mount Sleeve Davit can be used on any items from 0mm to 610mm providing the allowable bending moment meets 10170 NM. So for concrete abutments, coffer dams, trench boxes and many other areas. This offers a simple solution capable of taking two fall arrest devices such as a man riding winch and a fall arrest retrieve block for a single person entry.

Weekly hire rate excluding VAT
Adjustable Davit Mount comes with Mast, Davit Arm and Quick Fit Bracket £90.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Adjustable Davit Mount, Mast, Davit Arm and Quick Fit Bracket £40.00
Adjustable Davit Mount:
Rated Capacity (Working Load): 141kg
Physical Weight: 30.6kg
Dimensions: 104.14cm x 27.68cm x 38.1cm
Maximum Wall Thickness: 61cm
Standards: EN795: 1996 Type B
Top

Trench Sheet Davit Mount

Trench Sheet Davit Mount Trench Sheet Davit Mount in use Trench Sheet Davit Mount with Mast Fitted Constituent Parts of the Trench Sheet Davit Mount
Click on main image to expand

The Trench Sheet Davit Mount is designed to fit on any trench sheet with a pan of 205mm width or more. The internal opening is 95mm and will fit over many other items as well as trench sheets such as steel structures and some smaller walled trench boxes.

The Trench Sheet Davit Mount makes a simple solution to safe access and egress in what used to be an almost impossible situation. The unit can be used with either Fall Arrest or Full Man Riding Winches. The unit is simple to mount and very robust.

The Trench sheet must be able to withstand an allowable bending moment of 10170 NM which can be confirmed by the manufacturer of the sheet.

Weekly hire rate excluding VAT
Trench Sheet Davit Mount comes with Mast, Davit Arm and Quick Fit Bracket £90.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Trench Sheet Davit Mount, Mast, Davit Arm and Quick Fit Bracket £40.00
Trench Sheet Davit Base:
Rated Capacity (Working Load): 205kg
Physical Weight: 26.3kg
Dimensions: 26.67cm x 31.75cm x 26.03cm
Maximum Sheet Thickness: 7.6cm
Standards: EN795: 1997 Class B
Top

Porta-Base Trench Mount

Trench Sheet Davit Mount
Click on main image to expand

The Porta-Base Trench Mount is designed for use with trench sheets and dig-through-box shoring applications and is suitable for use with Reid Davits up to 1200mm radius. It can be used for the lifting of goods, the lifting of personnel or for providing a safety anchor for the prevention of falls.

The mount is simple to install by lowering the unit onto a suitable structure and tighening the fixing rods on the front and back.

The Porta-Base Trench Mount has a personnel lifting capacity of 250kg, a good lifting capacity of 500kg and fall arrest capacity for one user.

The substrate of the structure on which the product is placed must be able to withstand all the forces transmitted by the system when generating a maximum moment of 7.2kN.m (service load 6kN). Safety factors must be applied.

Sales price excluding VAT
Porta-Base Trench Mount £1,030.24
Service price excluding parts and VAT
Porta-Base Trench Mount £35.00
Trench Sheet Davit Base:
Rated Capacity (Working Load): Goods Lifting 500kg
Personnel Lifting Capacity 250kg
Dependent on Davit Operational Arc detailed in the Operation Gude
Physical Weight: 25kg
Materials: Galvanised Steel construction and powder coated finish
Standards: EN795: 2012 Type B
Top

5 Piece Hoist System

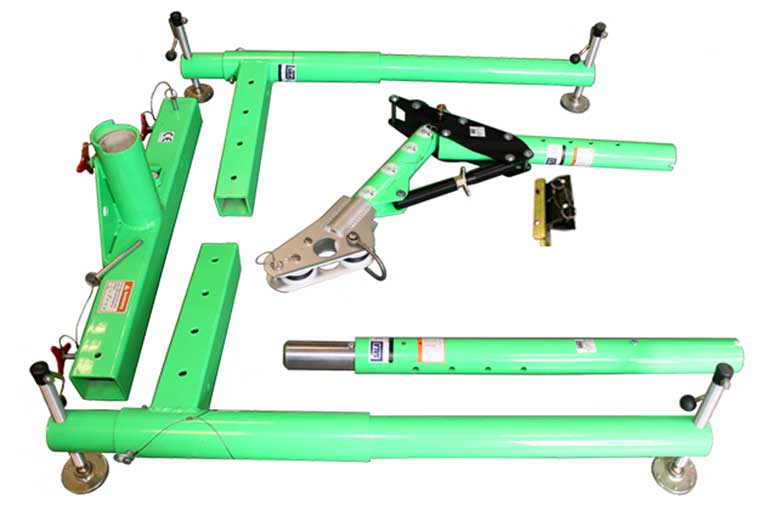

5 piece hoist system 5 piece hoist system constituent parts
Click on main image to expand

The Sala 5 piece hoist system allows the maximum amount of room for both entrant and top man to control the descent.

The system offers 2 quick fit mounting positions so that 2 full man riding winches can be used and adjusts in width from 940mm to 1626mm. The mast is able to be turned so that it can be taken out of the entrance area. This assists both recovery and the lowering of goods into the space.

The unit has 4 adjustable feet so as to ensure it can be set flat and will accommodate ground with undulations but is not suited for working on angled ground.

Weekly hire rate excluding VAT
5 Piece Hoist System £80.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
5 Piece Hoist System £40.00
Capacity: 205kg
Physical Weight (total): 37.7kg
Base Width: Adjusts from 94 to 162.6cm
Standards: EN 795: 1996 Class B
Top

5 Piece Short Reach Davit High Capacity

5 piece short reach davit high capacity 5 piece short reach davit high capacity side view
Click on main image to expand

The 5 piece short reach davit has 4 EN795 type B anchor points and is certified for fall arrest for 2 users at the same time.

There are two points for connection to fall arrest PPE and two guided cable lifelines for a SRL and winch. The SRL and winch can be mounted to the front or back of the universal mast or davit mast extension for access or rescue applications.

The base unit adjusts in width from 121.3cm to 189.9cm to accommodate various spaces. The mast can be turned 204° so that it can be taken out of the entrance area. This assists both recovery and the lowering of goods into the space.

The unit has 4 adjustable feet so as to ensure it can be set flat and will accommodate ground with undulations but is not suited for working on angled ground. The structure it is used on must be capable of supporting a 13.79kN vertical load.

This unit is now rated for both man-riding and goods lifting.

Sales price excluding VAT
5 Piece Short Reach Davit High Capacity (includes Short Reach Davit Arm, 3 Piece Short Reach Base and 84cm Mast Extension) £4,621.25
HC Davit Device Mounting Bracket £112.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
5 Piece Short Reach Davit High Capacity £40.00
Capacity: Load: 205kg
Fall Arrest: 2 users (140kg max each)
Rescue: 1 user (140kg max)
Physical Weight (total): 65.3kg
Base Width: Adjusts from 121.3cm to 189.9cm
Standards: CE EN795: 2012 Class B
CEN/TS16415: 2013 TypeB
EN1496:2006 Class B
Machine Directive 2006/42/CE § 6
Top

5 Piece Extra Wide Hoist System

5 piece extra wide hoist system 5 piece extra wide hoist system constituent parts
Click on main image to expand

The Sala 5 piece extra wide hoist system allows the maximum amount of room for both top man and entrant.

This system adjusts in width from 1778mm to 2464mm allowing it to clear gatic covers and larger manholes.

The system uses the same quick fit brackets as the smaller 5 piece hoist system and also offers the adjustable legs for level positioning.

The mast is able to be rotated and can have 2 full man riding winches used with it.

Weekly hire rate excluding VAT
5 Piece Extra Wide Hoist System £110.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
5 Piece Extra Wide Hoist System £40.00
Capacity: 205kg
Physical Weight (total): 37.7kg
Base Width: Adjusts from 94 to 162.6cm
Standards: EN 795: 1996 Class B
Top

5 Piece Long Reach Davit High Capacity

5 Piece Long Reach Davit High Capacity 5 Piece Long Reach Davit High Capacity
Click on main image to expand

The 5 piece long reach davit has 4 EN795 type B anchor points and is certified for fall arrest for 2 users at the same time.

There are two points for connection to fall arrest PPE and two guided cable lifelines for a SRL and winch. The SRL and winch can be mounted to the front or back of the universal mast or davit mast extension for access or rescue applications.

The base unit adjusts in width from 192.7cm to 261.3cm to accommodate larger spaces. The mast can be turned 204° so that it can be taken out of the entrance area. This assists both recovery and the lowering of goods into the space.

The unit has 4 adjustable feet so as to ensure it can be set flat and will accommodate ground with undulations but is not suited for working on angled ground. The structure it is used on must be capable of supporting a 13.79kN vertical load.

This unit is now rated for both man-riding and goods lifting.

Sales price excluding VAT
5 Piece Long Reach Davit High Capacity (includes Long Reach Davit Arm, 3 Piece Long Reach Base and 84cm Mast Extension) £5,297.55
HC Davit Device Mounting Bracket £112.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
5 Piece Long Reach Davit High Capacity £40.00
Capacity: Load: 205kg
Fall Arrest: 2 users (140kg max each)
Rescue: 1 user (140kg max)
Physical Weight (total): 81.6kg
Base Width: Adjusts from 192.7cm to 261.3cm
Standards: CE EN795: 2012 Class B
CEN/TS16415: 2013 TypeB
EN1496:2006 Class B
Machine Directive 2006/42/CE § 6
Top

Porta-Base H Base

Portabase H Base Portabase H Base with T-Davit Portabase H Base with Portadavit Quantum Portabase H Base ready for transport
Click on main image to expand

The Porta-Base H comes as a three piece system that is easy to transport and assemble where use of a fixed socket is not possible.

The unit is intended to be used for the lifting of goods, personnel, rope access or for providing a safety anchor for the prevention of falls as part of a personal fall protection system. (PFAS).

The Porta-Base H can be used with the Porta-Davit Quantum or T-Davits which offer a working radius of up to 800mm at maximum. The unit can support goods lifting up to 600kg and personnel lifting up to 300kg.

The base unit adjusts in width from 143cm to 183cm and has levelling feet to enable the system to function correctly on uneven ground.

The Porta-Base H is approved to EN795:2012 and ATEX Zone 2 as standard and optionally for ATEX Zone 1.

Sales price excluding VAT
Porta-Base H Standard £2,694.99
Double Winched T-Davit Column Option 3 - 800mm Radius £2,084.24
Double Winched T-Davit Column Option 4 - 800mm Radius £2,143.85
Double Winched T-Davit Column Option 5 - 800mm Radius £2,203.47
Porta-Davit Quantum Ridged Backstay, Winch Ready - 800mm radius £1,778.30
Bracket to suit your winch P.O.A.

Item does not include Winches or Brackets

Service price excluding parts and VAT
Porta-Base H Standard £40.00
Standards: EN795:2012
PD CEN /TS1641S:2013
AS/NZS 5532:2013
ATEX Certified (Zone 2) as standard or optionally ATEX Certified (Zone 1)
IRATA

For dimensions, WLL and weights please see the Porta-Base H Base & Davit Options.

Top

Davit Vehicle Hitch Mount

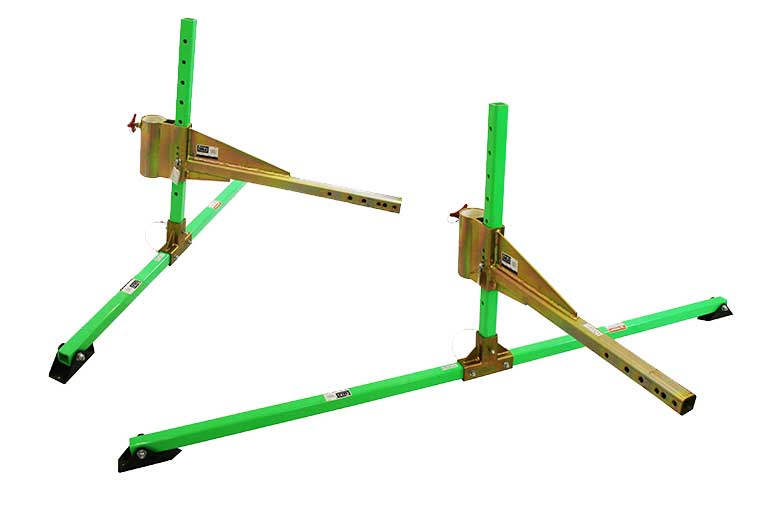

Davit Vehicle Hitch Mount Davit Vehicle Hitch Mount close up 1314mm and 2533mm Davit Vehicle Hitch Mounts Universal hitch ball coupler on Davit Vehicle Hitch Mount
Click on main image to expand

The Sala Davit Vehicle Hitch Mount (DVHM) offers a perfect solution to awkward access if a vehicle with a tow bar can be sited close to the edge requiring entry.

There are two versions available with a choice of spreader leg widths of 1314mm and 2533mm. The wider base allows either the short 300-730mm or the long offset davit arm offering 760-1200mm. The narrower base can only use the shorter offset davit arm. Different masts can be fitted to give varying heights.

The ignition keys for the vehicle should be locked out for safety when using this system.

Weekly hire rate excluding VAT
DVHM, 300-730mm Davit Arm, 838mm Mast, Universal Hitch Ball Coupler and Winch Mount £90.00
DVHM, 760-1200mm Davit Arm, 838mm Mast, Universal Hitch Ball Coupler and Winch Mount £110.00
Lower Mast 533mm £9.00
Lower Mast 838mm £11.00
Lower Mast 1143mm £13.00
Lower Mast 1448mm £15.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Davit Hitch mount, mast and davit £40.00
Vehicle Hitch Mount Base: Spreader Leg 1314mm Wide Spreader Leg 2533mm Wide
Rated Capacity (Working Load): 204kg 204kg
Physical Weight: 27.0kg 30.6kg
Dimensions: 104.14cm x 131.31cm x 91.44cm 104.14cm x 253.23cm x 91.44cm
Standards: EN795: Class B EN795: Class B
Top

Vehicle Hitch Mount Base High Capacity

Davit Vehicle Hitch Mount Davit Vehicle Hitch Mount close up 1314mm Davit Vehicle Hitch Mount with small offset davit 2533mm Davit Vehicle Hitch Mount with large offset davit
Click on main image to expand

The vehicle hitch mount base allows you to connect to a vehicle (minimum vehicle weight 925kg) with a hitch ball coupler (50mm / 2") to provide a portable anchor point. It provides fall arrest capability for 2 users and up to two guided lines for an SRL and/or winch.

The spreader leg is 239cm in width and different masts can be fitted (only 1 mast extension can be used) to give varying davit heights. The base unit can be extended from 188.4cm to 264.6cm away from the vehicle.

With the standard unit the bottom of the ball coupler can be adjusted from 305cm to 679cm high. For vehicles with a high hitch attachment there is an optional coupler that operates from 305cm to 805cm.

Both the small and long reach high capacity davit arms can be used with this system.

The ignition keys for the vehicle should be locked out for safety when using this system.

This unit is now rated for both man-riding and goods lifting.

Sales price excluding VAT
Davit Vehicle Hitch Mount Base High Capacity £2,056.35
Short Reach Davit Arm High Capacity (14"-28") with Universal Lower Mast £1,758.30
Long Reach Davit Arm High Capacity (27"-44") with Universal Lower Mast £2,062.10
53cm Davit Mast Extension High Capacity £645.55
84cm Davit Mast Extension High Capacity £690.15
114cm Davit Mast Extension High Capacity £814.60
140cm Davit Mast Extension High Capacity £937.95
Extended Height Vehicle Hitch Adjustment £308.55
HC Davit Device Mounting Bracket £112.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Vehicle Hitch Mount Base High Capacity, Mast and Davit Arm £40.00
Capacity: Load: 205kg
Fall Arrest: 2 users (140kg max each)
Rescue: 1 user (140kg max)
Net Weight: Base Unit: 40.8kg
Net Weight: Extended Height Vehicle Hitch Adjustment: 4.0kg
Standards: CE EN795: 2012 Class B
CEN/TS16415: 2013 TypeB
EN1496:2006 Class B
Machine Directive 2006/42/CE § 6
Top

Catwalk Clamp

Catwalk Clamp Davit Mount Catwalk Clamp Davit Mount in Situ Catwalk Clamp Davit Mount Ready for Transport
Click on main image to expand

The Catwalk Clamp offers a perfect solution where space is limited and the structure needs a safe system of access and egress. All legs are adjustable to ensure that sighting can be altered to suit the flooring. The back clamping mount offers variable settings to ensure the throat of the clamp can be positioned onto the catwalk and then secured into place with the leg adjuster.

The Catwalk Clamp requires a mast and davit to be used with it and these can be selected from the standard range.

Weekly hire rate excluding VAT
Catwalk Clamp with 300-730mm Davit Arm and 838mm Mast £130.00
Service price excluding parts and VAT
Catwalk Clamp System £50.00
Catwalk Clamp Base:
Rated Capacity (Working Load): 204kg
Physical Weight: 37.0kgs
Clamp Depth (Thickness of Walkway): Up to 520mm
Length adjustment (Width of Walkway): 1460mm to 1765mm
Standards: EN795: Class B
Top

Counterweight Hoist System

Counterweight Hoist System Ready for Transport Counterweight Hoist System in use Counterweight Hoist System in use with stretcher
Click on main image to expand

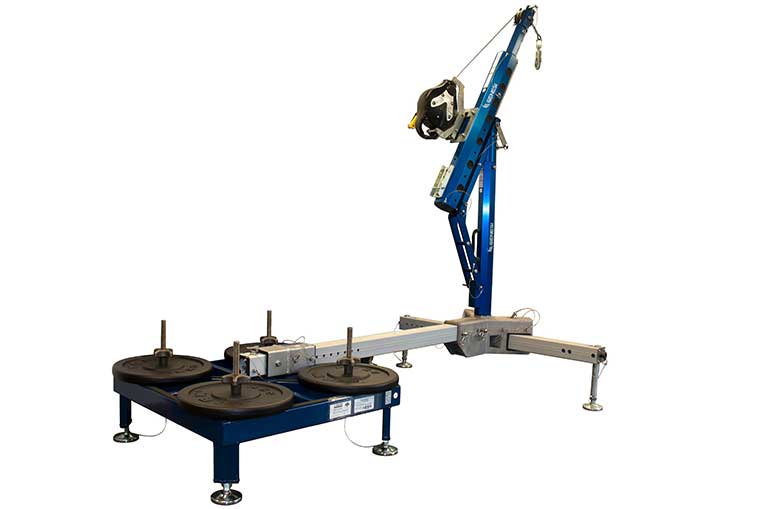

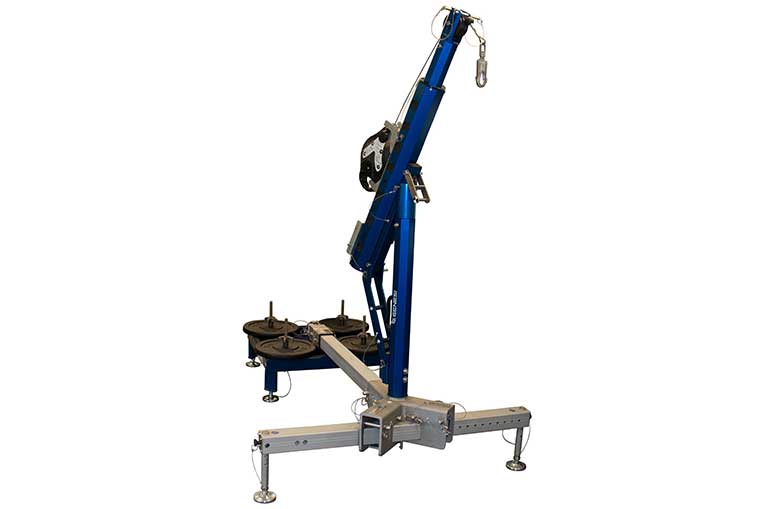

The Counterweight Hoist System is perfect for conditions where an entry point has a raised area around it or is far too large to span. This makes the system ideal for large digestion storage tanks as well as long trench shaped confined space areas.

The Counterweight’s leg height adjusts from 200mm to 900mm and length can be increased or decreased so as to use the minimum number of weights for the space you have.

Please refer to the Counterweight Table below to determine the number of weights that you require.

Counterweight Table

Diagram of the Pin Positions and Exposed Holes in Expansion Tube

300-730mm Adjustable Offset Davit Arm:

  2 Holes Exposed 3 Holes Exposed 4 Holes Exposed 5 Holes Exposed 6 Holes Exposed
PP1 22 plates @ 25 kg 20 plates @ 25 kg 20 plates @ 25 kg 20 plates @ 25 kg 20 plates @ 25 kg
PP2 24 plates @ 25 kg 22 plates @ 25 kg 22 plates @ 25 kg 20 plates @ 25 kg 20 plates @ 25 kg
PP3 24 plates @ 25 kg 24 plates @ 25 kg 24 plates @ 25 kg 22 plates @ 25 kg 22 plates @ 25 kg
PP4 DO NOT USE DO NOT USE DO NOT USE DO NOT USE DO NOT USE

Maximum 228cm Mast Height Allowed. Mast Extensions are not allowed.

Weekly hire rate excluding VAT
Counterweight Hoist System comes with Mast, Short Reach Davit Arm & Quick Fit Bracket £150.00
25kg Weights (each) £2.00

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Counterweight Hoist System £50.00
Counterweight Hoist System Base:
Rated Capacity (Working Load): 204kg
Physical Weight: 88.6kgs
Standards: CE EN795: Class B
Top

Porta-Base Counterbalance

Porta-Base Counterbalance Porta-Base Counterbalance with T-Davit Porta-Base Counterbalance with Porta-Davit Quantum Porta-Base Counterbalance ready for transport
Click on main image to expand

The Porta-Base Counterbalance comes as a five piece system that is easy to transport and assemble where use of a fixed socket is not possible.

The Porta-Base Counterbalance can be used with the Porta-Davit Quantum or T-Davits that have a maximum radius of 1200mm. The unit can support both goods lifting up to 600kg and personnel lifting up to 300kg.

The base unit adjusts in width from 232cm to 272cm and has levelling feet to enable the system to function correctly on uneven ground. It also has integrated swivel castors to increase portability.

20kg hand weights are used with the unit and the number required is calculated based upon the davit radius and load weight required (see the Porta-Base Counterbalance & Davit Option sheet for details).

The Porta-Base Counterbalance is approved to EN795:2012 and can be certified for ATEX Zone 2 as an option.

Sales price excluding VAT
Porta-Base Counterbalance Standard £3,936.75
Double Winched T-Davit Column Option 3 - 800mm Radius £2,084.24
Double Winched T-Davit Column Option 3 - 1000mm Radius £2,143.85
Double Winched T-Davit Column Option 3 - 1200mm Radius £2,203.47
Double Winched T-Davit Column Option 4 - 800mm Radius £2,143.85
Double Winched T-Davit Column Option 4 - 1000mm Radius £2,203.47
Double Winched T-Davit Column Option 4 - 1200mm Radius £2,263.08
Double Winched T-Davit Column Option 5 - 800mm Radius £2,203.47
Double Winched T-Davit Column Option 5 - 1000mm Radius £2,263.08
Double Winched T-Davit Column Option 5 - 1200mm Radius £2,322.69
Porta-Davit Quantum Ridged Backstay, Winch Ready - 800mm radius £1,778.30
Porta-Davit Quantum Strop & Shackle Only - 900-1200mm radius £1,425.98
Porta-Davit Quantum Ridged Backstay, Winch Ready - 900-1200mm radius £1,813.80
360kg Hand Weight Set (18 x 20kg) £2,053.95
540kg Hand Weight Set (27 x 20kg) £3,080.94
Hand Weight (1 x 20kg) £114.11
Bracket to suit your winch P.O.A.

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Counterweight Hoist System £50.00
Standards: EN795:2012
ANSI Z359.18-17
Can be optionally certified for ATEX (Zone 2)
IRATA

For dimensions, WLL and weights please see the Porta-Base Counterbalance & Davit Options.

Top

Counterweight Base High Capacity with Cart

Counterweight with Weights, Winch and SRL Fitted Counterweight Base Unit Counterweight Folded for Storage Counterweight Side View Counterweight Weights
Click on main image to expand

The Counterweight system has a central counterweight cart connected to a davit base. All the components of the system can be easily moved to different locations as they are stored on the cart along with the mast and davit arm. The cart also has a built-in forklift pocket and lifting rings for ease of transport.

The counterweight can be used with either the short reach davit arm (18 x 20kg weights required) or the long reach davit arm (32 x 20kg weights required).

The sales price for the counterweight is for the counterweight base system only. The mast, davit arm and weights must be bought as separate items.

This unit is now rated for both man-riding and goods lifting.

Sales price excluding VAT
Counterweight Base High Capacity with Cart £8,923.80
Short Reach Davit Arm High Capacity (14"-28") with Universal Lower Mast £1,758.20
Long Reach Davit Arm High Capacity (27"-44") with Universal Lower Mast £2,062.10
53cm Davit Mast Extension High Capacity £645.55
84cm Davit Mast Extension High Capacity £690.15
114cm Davit Mast Extension High Capacity £814.60
140cm Davit Mast Extension High Capacity £937.95
HC Davit Device Mounting Bracket £112.00
20kg Weight (each) £156.50

Item does not include Winches or Fall Arrest Retrieve Blocks

Service price excluding parts and VAT
Counterweight System High Capacity with Cart £50.00
Capacity: Load: 205kg
Fall Arrest: 2 users (140kg max each)
Rescue: 1 user (140kg max).
Working Zone: Rated for fall arrest and rescue in front of legs.
Net Weight - Base Unit (no weights): 205kg
Standards: CE EN795: 2012 Class B
CEN/TS16415: 2013 TypeB
EN1496:2006 Class B
Machine Directive 2006/42/CE § 6
Top

Related Items:
